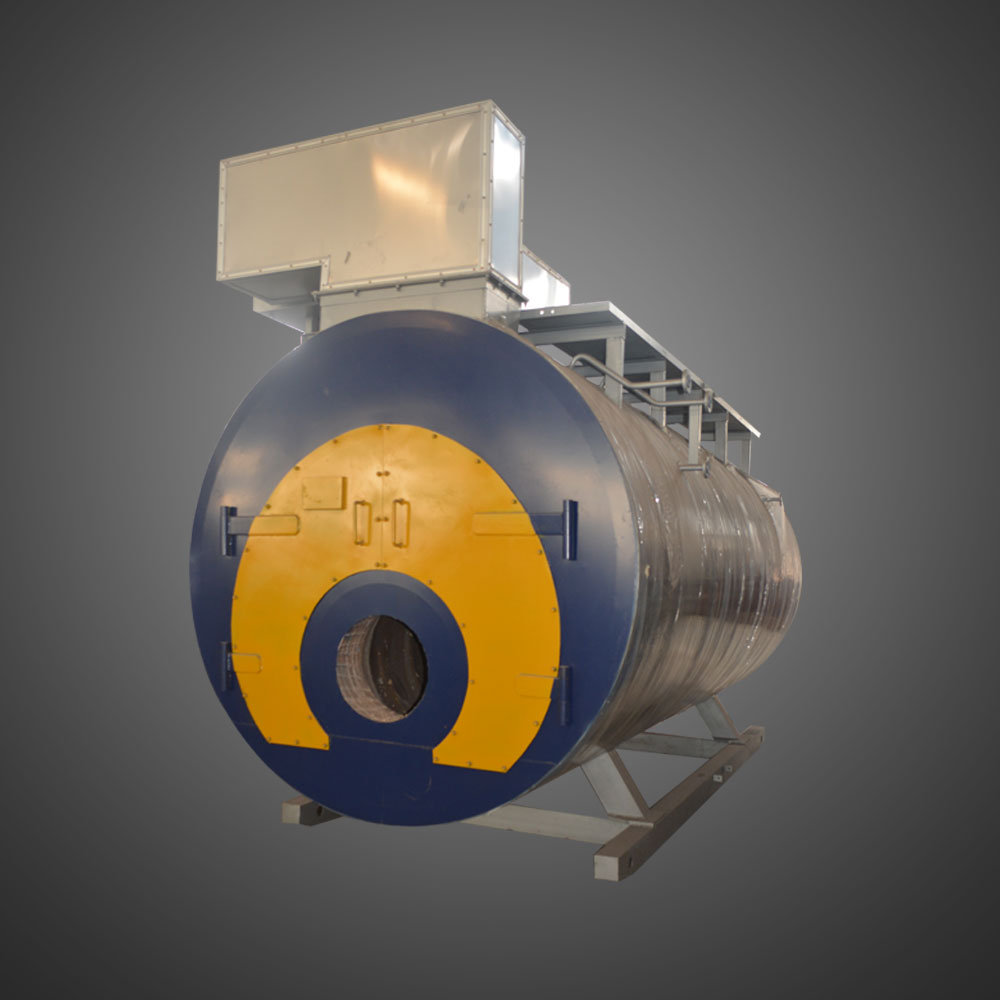

YY(Q)W oil (gas) fired thermal oil boiler

1. Thermal oil boiler is direct-flow boiler which is based on forced circulation designing.

2. Closed circulation heat supplying, connecting to the air, increasing boiler life.liquid heat transferring with low heat lost, energy saving and good environment protection.

3. Main body use coil pipe structure, increasing heat surface and the boiler efficiency.

4. The boiler’s main feature is counter-current heat exchanging,

temperature difference between the oil outlet and emission outlet is less than 30℃.

5. Low pressure, but high temperature.

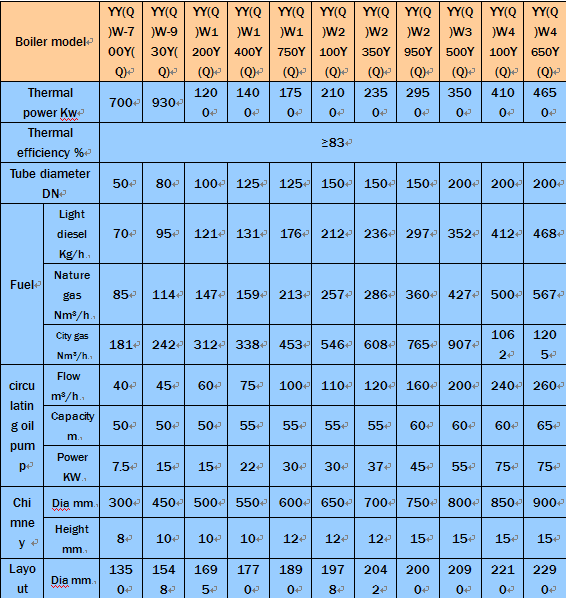

Related models, parameters:
