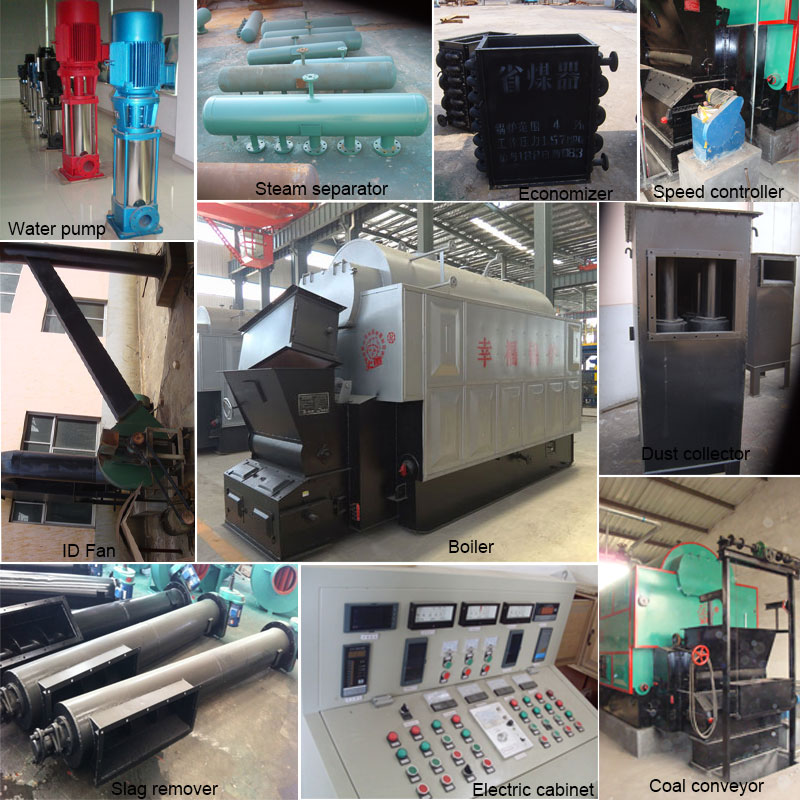

DZL Biomass Steam Boiler
Biomass boiler is designed based on the original mature layer combustion furnace technology and overcomes the organization of high temperature cyclone dynamic field in the furnace,meanwhile it has solved the problem of cooking,partial combustion and block smoke producing during burning of the biomass materials.Burning rate can be 99%.Thermal efficiency raised from 78%to 85%-90% compared with coal fired boiler.Biomass fuels,are more extensive and renewable,mainly include crop stalks, wood shavings,sawdust,peanut shell,corn cob,rice husk,tree branches,leaves and hay,which can be directly crushed,pressure molded.Calorific value is between 3600 to 5100kcal/kg which can completely replace coal and other fuels.Most important the price is much lower which can save the operation cost of the boiler.Biomass fuel,as the fourth largest energy after coal,oil and natural gas,have been vigorously advocated and promoted by our government due to its-renewable,clean, environmental protection.
Related models, parameters：
|
boiler model
|
DZL2-0.7/1.25/1.6-AII
|
DZL4-1.25/1.6/2.5-AII
|
DZL6-1.25/1.6/2.5-AII
|
DZL8-1.25/1.6/2.5-AII
|
DZL10-1.25/
1.6/2.5-AII
|
DZL20-1.25/
1.6/2.5-AII.
|
|
Rated evaporation capacity
|
t/h
|
2
|
4
|
6
|
8
|
10
|
20
|
|
Operation pressure
|
Mpa
|
1.25/1.6
|
1.25/1.6/2.5
|
1.25/1.6/2.5
|
1.25/1.6/2.5
|
1.25/1.6/2.5
|
1.25/1.6/2.5
|
|
Steam temperature
|
℃
|
194/204
|
194/204/226
|
194/204/226
|
194/204/226
|
194/204/226
|
194/204/226
|
|
Water-inlet temperature
|
℃
|
20
|
20
|
20
|
105
|
105
|
105
|
|
Boiler heating efficiency
|
%
|
≥78
|
≥78
|
≥80
|
≥80
|
≥80
|
≥82
|
|
Area of stoker
|
㎡
|
3.2
|
5.14
|
7.4
|
9.6
|
11.4
|
23.15
|
|
Coal available
|
|
II type bituminous, low heat capability:17700-21000KJ/kg
|
|
Water pump
|
model
|
|
1½GC5×7
|
1½GC5×7
|
2GC-5×6
|
2½GC6×6
|
DG12×7
|
DG25-35×5
|
|
|
Motor power
|
KW
|
7.5/11
|
7.5/11/18.5
|
15/18.5
|
15/18.5
|
18.5/22
|
30/37
|
|
Blast fan
|
Model
|
|
G6-41-13
NO5.4A
|
G6-41-13
NO6.4A
|
G6-41-13
NO7.1A
|
G6-41-13
NO8.5A
|
G6-41-13
NO8.5A
|
TG20-1
|
|
|
Ventilation
|
m³/h
|
4358-2310
|
7358-3596
|
10354-5394
|
18137-9369
|
18137-9367
|
32079
|
|
|
Wind pressure
|
Pa
|
994-1254
|
1181-1436
|
1697-2270
|
2535-3391
|
2535-3391
|
2559
|
|
|
Motor Power
|
KW
|
3
|
5.5
|
7.5
|
18.5
|
18.5
|
37
|
|
Induced draft fan
|
Model
|
|
Y6-41-13
NO5.4C
|
Y6-41-13
NO7.1C
|
1Y6-41-13
NO10C
|
Y6-41-13
NO11.2D
|
Y6-41-13
NO11.2D
|
GY20-15
|
|
|
Ventilation
|
m3/h
|
8901-4350
|
15219-8171
|
32144-16607
|
41773-21578
|
41773-21578
|
73308
|
|
|
Wind pressure
|
Pa
|
2568-3240
|
2454-3283
|
2574-3444
|
2764-3697
|
2764-3697
|
3515
|
|
|
Motor Power
|
KW
|
11
|
22
|
37
|
45
|
55
|
110
|
|
Dimensions of biggest parts for shipment
|
m
|
5.82×2.1×3.2
|
6.5×2.66×3.52
|
6.7×3×3.54
|
8.0×3.2×3.58
|
8.45×3.2×3.58
|
10×4.8×3.55
|
|
Weight of biggest parts for shipment
|
t
|
18/19/20
|
27/29/31
|
32/33/34
|
42/43/44
|
45/47/49
|
30/31/32
|
