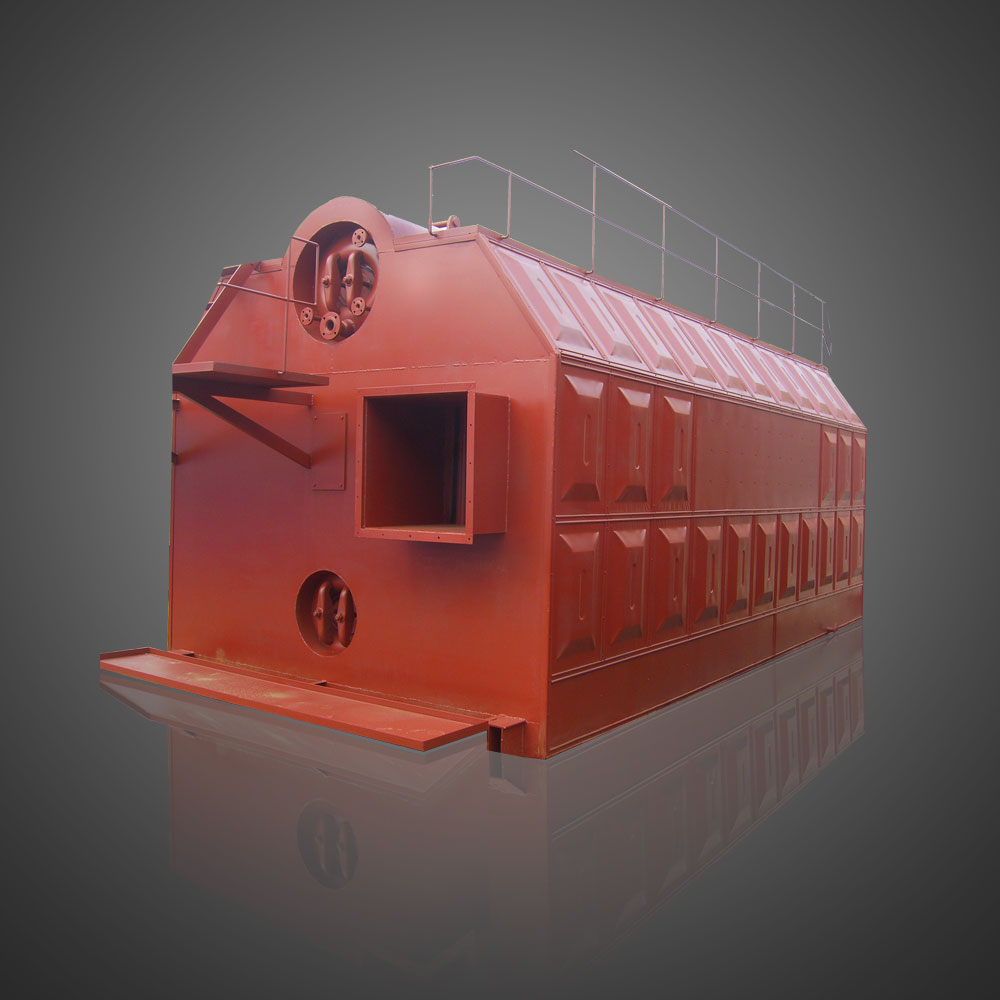

SZL water tube quickly installed (assembled) boiler has two vertical steam drums, and the innovative horizontal cyclone-fired combustion chamber, which could effectively enhance the thermal efficiency and reduce the flue gas emission concentration. The flue gas emission  concentration is lower than 100 mm/nm3, the flue gas blackness is lower than Ringemann level 1,which enables the boiler to be used in the first-class environment protected area.

The boiler installs one cast iron economizer at its back body, the grate applies the chamber-separated ventilation structure, which is easy to adjust. The separate-layer coal

supply device could be chosen according to the customer requirement. Advantages of such boiler are: strong power , high thermal efficiency , 110% overload capability , compactly designed , small floor area . Customers appreciate its safely operated, investment conserved , and broadly fuel adapted.
